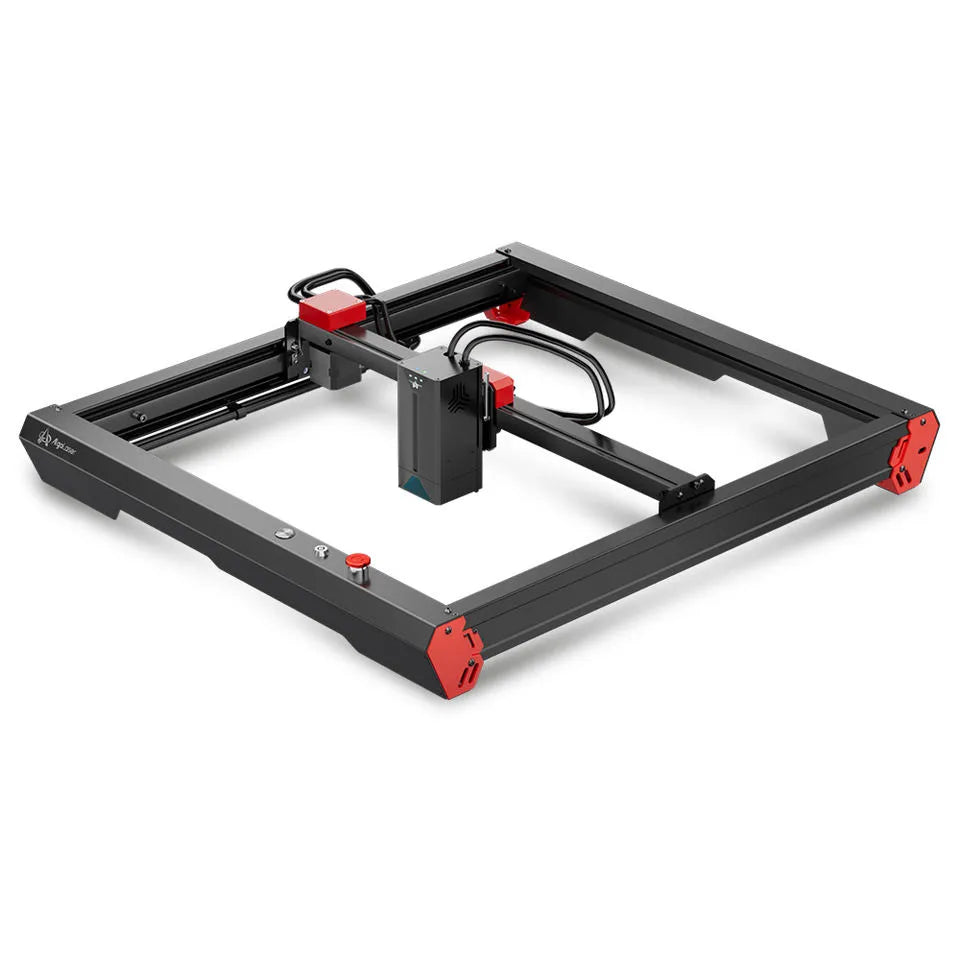

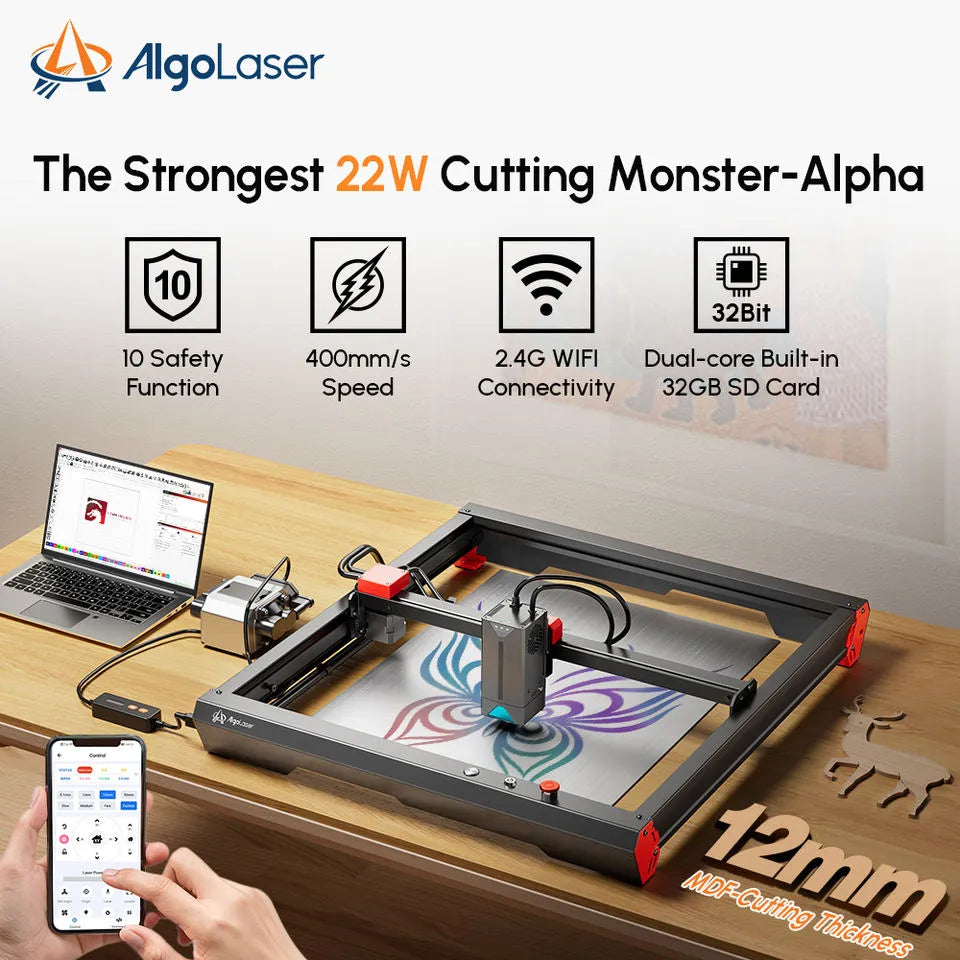

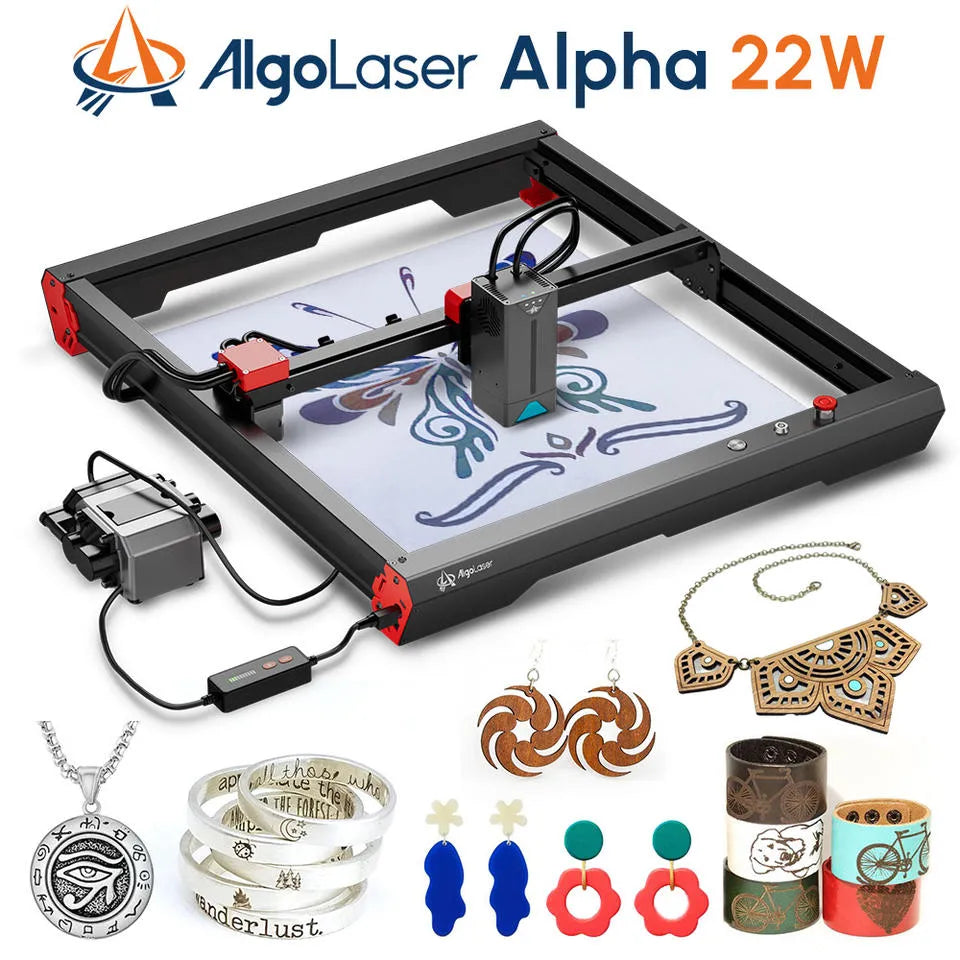

AlgoLaser Alpha 22w Laser Engraver Machine 400 x 400mm
AlgoLaser Alpha 22W Smart Laser Engraver Cutter with Dual-core CPU, APP Control, and Air Pump for Ultimate Precision and Versatility
Unlocking Creativity: Algolaser’s Breakthrough Features:

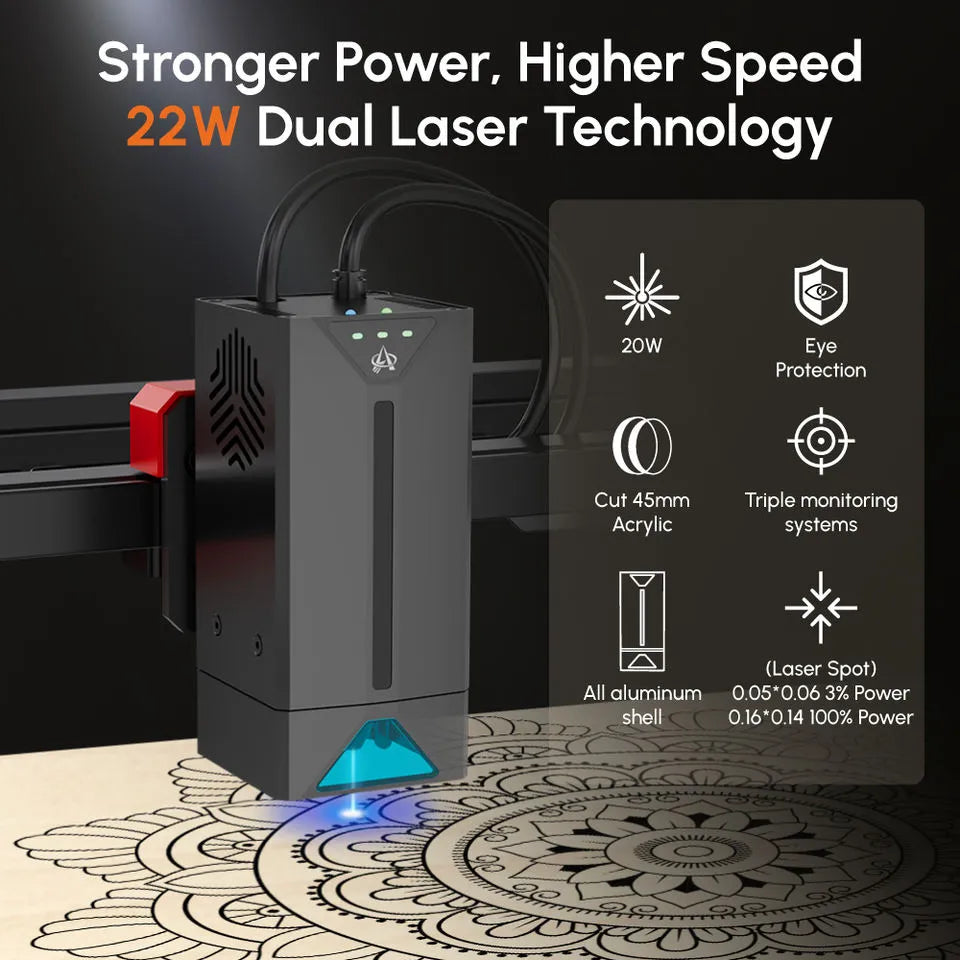

- Advanced Laser Compression: Algolaser pioneers cutting-edge spot compression technology using physical optics. This innovation introduces a novel laser coupling method, compacting four 6W laser diodes with a 40mm focal length. This dynamic approach enables penetration through 100+ materials, even achieving precise cuts on 45mm black acrylic. Elevate your capabilities with heightened power, superior cutting prowess, and enhanced speeds, setting the stage for a new era of intelligent laser engraving machinery tailored to your diverse demands.
- Craftsmanship for All: Departing from conventional machine design, the Algolaser team proudly unveils the Alpha 22W’s distinct appearance. Seamlessly integrating this aesthetic brilliance with meticulously researched smart algorithms results in a laser engraver that unleashes the full spectrum of artistic ingenuity. Its heightened intelligence, accelerated performance, and augmented power redefine the benchmarks of laser engraving, ensuring an unparalleled experience for every creative enthusiast.
- Precision Redefined: Leveraging the latest COS optical technology, the Alpha Laser 20W redefines precision. The spot area is minimized to an astonishing 0.08 × 0.07mm, setting the stage for intricate engraving. With engraving and cutting accuracy reaching an impressive tolerance of 0.004 inches, the machine’s cutting capabilities surge to unprecedented heights. From metals and stainless steel to ceramics and glass, this 20-22W marvel emerges as an unrivaled cutting monster within its category.
Algolaser’s transformative technologies empower you to transcend limitations, transform visions into reality, and redefine what’s possible in the realm of laser engraving.
Specification:
- Smart Device: Yes
- Brand Name: AlgoLaser
- Real Laser Power: 22W
- Features: Offline Smart Laser
- Engraving Speed: 20,000mm/min
- Engraving Area: 400*400mm
- Professional Support: One-Year Warranty
- Benefits: Top-quality tools
- Air Pump: 30 L/min
- Model: AlgoLaser Alpha 22W
- Spot Size: 0.06*0.05mm
- Connection: Wi-fi (2.4G), TF Card, USB
- Control Software: Lightburn/laserGRBL/Mobile APP
- Laser Type: Diode
- Wave Length: 455±5nm
- Focus: 50mm (From radiators to objects)
- Input Format: jpg, svg, png, bmp, G code, CAD, AI, CDR, dwg, etc
- Lens Materials: Professional Focusing Optical Glass (Fused Silica & H-K9L)
- Frame Materials: Aluminum Alloy
- Motherboard: ALGO LASER V2.1
- Input Voltage: 100V-240V (Compatible) 50/60Hz 24V/6A
- Laser Module Lifetime: 8000-10,000 Hrs
- Gross Weight: 9.8kg
- Engraving Area: 400MM×400MM
- Speed: 30000mm/min Max Available Laser Modules: Second-generation COS Technology 20W Laser Modules (Real Luminous Power: 20,000mw)
- Laser Spot : 0.06mm*0.05mm
- 20W One Pass cutting capacity:
- Birch plywood: 10mm
- Basswood plywood: 15mm
- Eucalyptus plywood: 5mm
- Black acrylic: 10mm
- Black ABS board: 4mm
- MDF: 3mm
- Paulownia wood: 15mm
- Bamboo: 8.5mm
- Gray cardboard: 3mm
- Steel plate: 0.01mm
*This is a special import item, lead time will be 4-6 weeks from date of order and payment confirmation.
