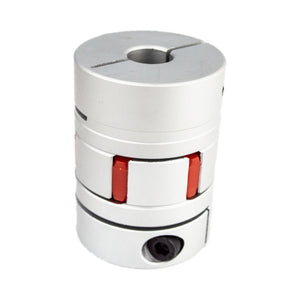

Flexible Plum Type Coupling 40mm OD 55mm Long
Flexible Plum Type Coupling 40mm OD 55mm Long
-
Flexible coupling to take up misalignment between two shafts. Typically used between the output shaft of a stepper motor or gearbox and a drive shaft, ball screw or gearbox.
Specifications:
- Outer diameter: 40mm
- Length: 55mm
- Maximum Axial Deviation: 0.8mm
- Maximum Angular Deviation: 1 Degree
- Maximum Radial Deviation: 0.02mm
- Bore diameter sizes: (Please select from the menu above)
- 8 to 8mm
- 8 to 10mm
- 8 to 12mm
- 8 to 14mm
- 10 to 10mm
- 10 to 12mm
- 10 to 14mm
- 12 to 12mm
- 12 to 14mm
- 14 to 14mm
- Rated Torque: 32 N.m
- Peak Torque: 64 N.m
- Maximum Speed: 13 000 RPM
- Static Torque Rigidity: 500 N.m
- Clamping type
- Includes clamping screws
- Maximum Speed: 17 000 RPM
- Clamping type
- Includes clamping screws
If this product is purchased and no stock is available, our sales team will contact you with the option of a full refund or suggest similar alternatives which are in stock. If you would like to confirm stock before purchase, please contact our online sales team or email sales@gadgitechtrading.co.za
