MASSO G3 is the most stable, reliable and easy-to-use CNC controller money can buy. Escape the reliability issues of PC-based controllers, which are vulnerable to external design flaws, incompatible software updates and viruses. No need to worry about installing drivers or motion cards, just wire the MASSO to your motor drives and enter calibration values to start machining.
AXYZ2030PL Plasma Cutting CNC Machine - Masso Controller

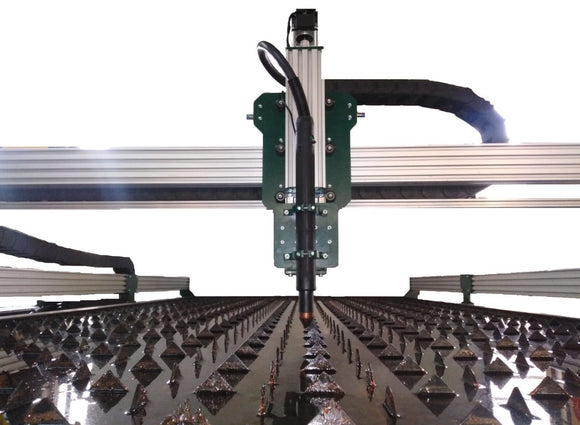

AXYZ2030PL Plasma Cutting CNC Machine
2x3m CNC Machine Specs:
a New line of next generation CNC Plasma Cutters that blur the line between hobby and commercial machines, while offering best in class performance AND affordability. Our machines are in a completely different class of performance able to operate for long hours everyday of the week. This machine is perfect for cutting steel, stainless steel, aluminium, brass and copper.
CNC Machine Features:Footprint: 2000mm x 3000mm at the base *Stock size measured from base
Work Area: 1800mm x 2800mm x 50mm *Stock size
Maximum cutting depth 12mm.
Open ends allow pass through of longer materials.
All aluminium frame.
Electronics controller box with USB cable connection (cable included)
Full cable management with X & Y axis cable drag chains.
7 Limit Switches (X+, X-, Y+, Y-, Z+)
Torch Height Controller
Square Tubing Table painted black
Water Table With Water Outlet
Floating Z-Probe
Hypertherm 45XP Plasma Cutter with straight torch 7m Lead
Masso Controller License included
Machine Specifications:
4x Nema23 stepper motors 12.6kg/cm 175oz/in
4 Axis Stepper Motor Driver Controller Board
12V 100W Power Supply
GT3 reinforced neoprene 3mm pitch timing belts on X & Y axis
Dual motors on Y axis
T8 lead screw on Z axis
Configured resolution: 0.3mm
Technical Data of Hypertherm 45XP:
Duty Cycle: @ 50% @ 45 A, 200 – 240 V, 1-PH
60% @ 41 A, 200 – 240 V, 1-PH
100% @ 32 A, 200 – 240 V, 1-PH
Output Current Range (A) Plasma: 10-45Amps
Rate input current (A): 39A
Efficiency (%): 88
Clean Cutting Thickness: (12mm)
Free 200L Mac Afric Compressor:
Motor Power: 2.2KW / 3 HP
Motor/Pump Type: Belt Drive
Tank Size: 200 Liters
Clan Air Delivery Rate: 8.83 CFM (250 Liters/min)
Input Power: 230V Single Phase
Maximum Pressure: 116 PSI, 8 Bar
MASSO G3
Powerful. Stable. Guaranteed.
With MASSO G3 you get:
- Compulsory delivery, setup and minimal training of the machine at additional costs to the customer - within South Africa only.
- Delivery Time For Gauteng And Surrounding Provinces 3-5 Weeks Lead Time
- Delivery Time For Northern, Eastern & Western Cape 5-8 Weeks Lead Time
- The machine comes standard with a plasma cutting table.
- The machine comes with a Free 200L Mac Afric Drive Belt Compressor.
- Images are for illustrative purposes only.
