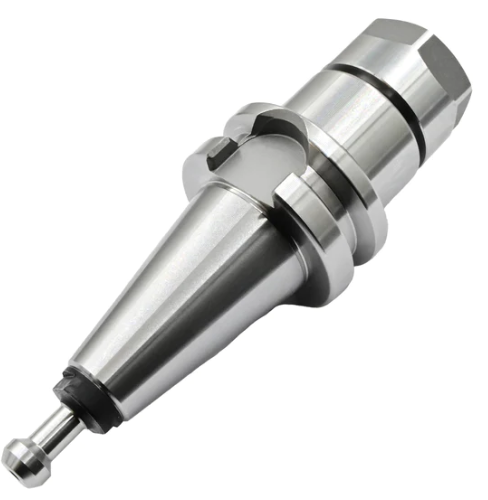

BT30 Handle with pull stud for ATC Spindle, ER20
These are additional BT30 Handles to be used with ATC spindles for example the 3kW ATC spindle we sell. As you can see in the pictures, the machining is of a very high standard and the runout is <0.003mm. The collet interface is ER20 which ranges from a 1mm collet to a 13mm collet size.
The handle come with a 45° pull stud and will require a ER20 collet to use it.
Specifications:
- Handle model: BT30
- Length: 70mm
- Angle of included pull stud: 45°
- Collet interface: ER20
- Material: 40CR Steel
- Runout: <0.003mm
- Maximum speed rating: 8000RPM
