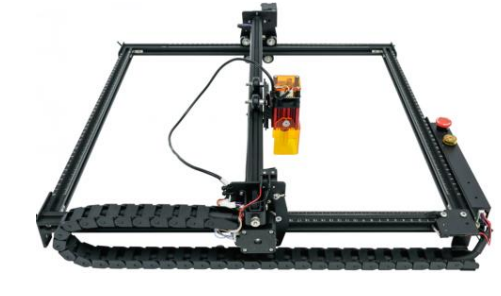

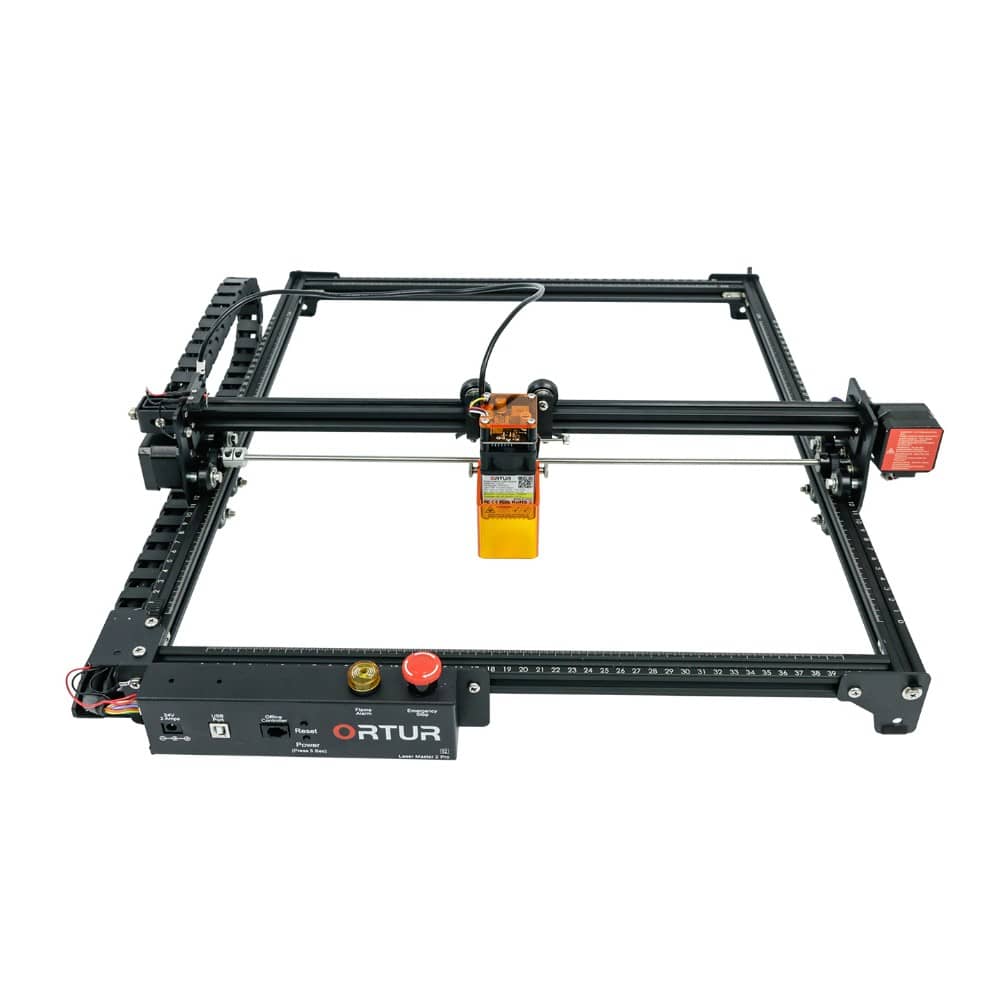

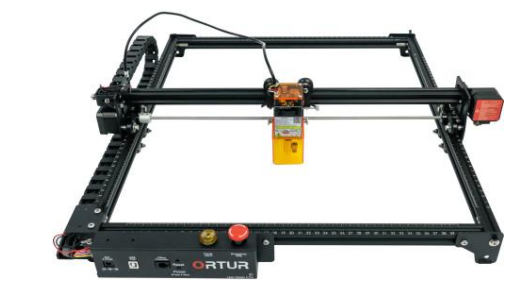

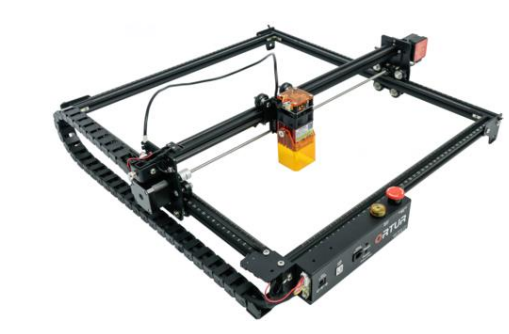

Ortur Pro S2 Laser Engraver Machine 400 x 400mm

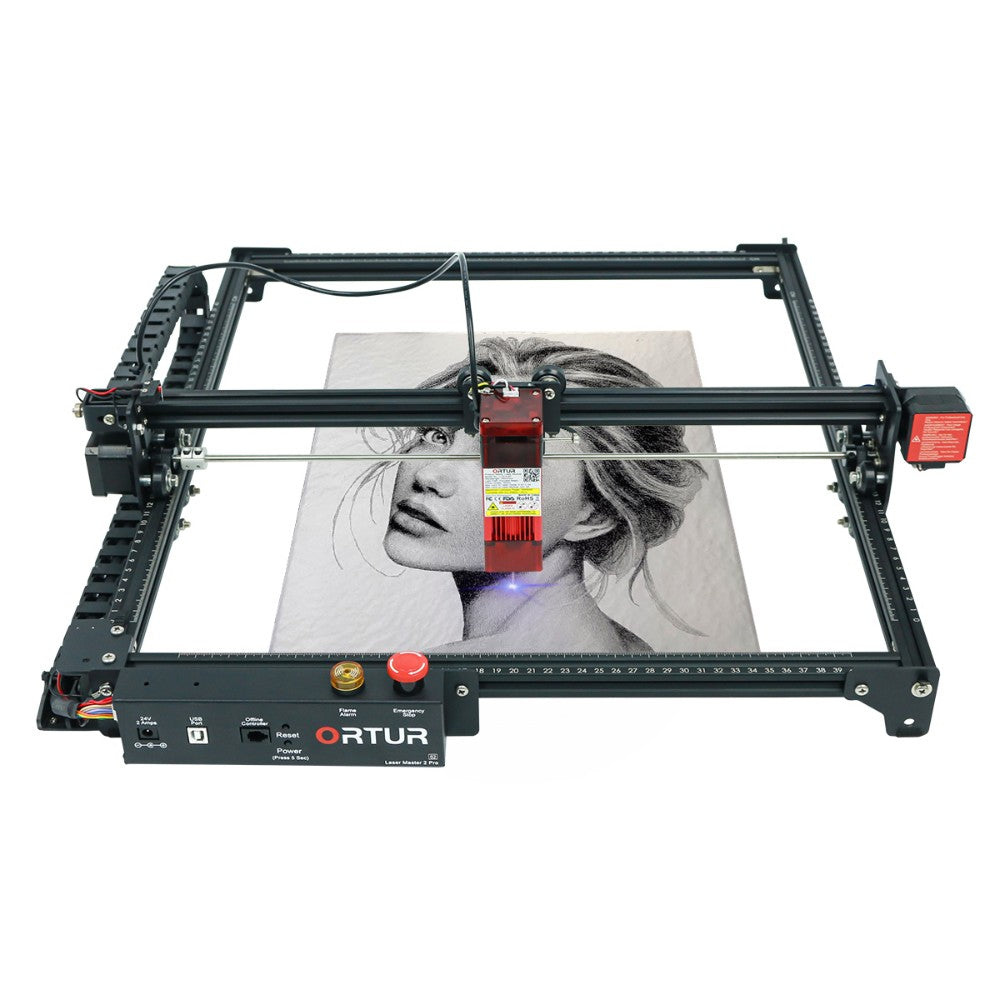

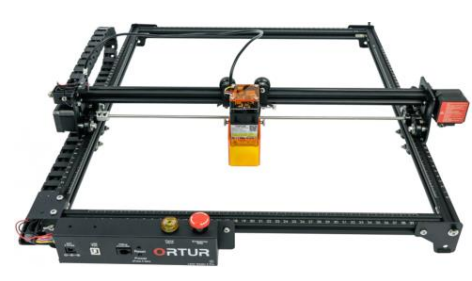

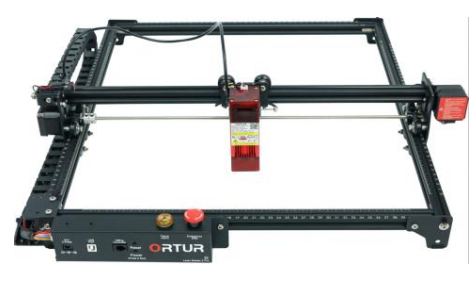

Ortur Laser Master 2 Pro S2 20W Laser Engraving Machine
Main Features:
Specialized OLM-MAXUP-V10 Motherboard with 32Bits MCU, ORTUR Laser 1.52 firmware
Smoother and More Delicate Carving, High Precision and Speed
Support Flame Detection Function
Support Emergency Stop Switch
Support Ortur Offline Contrl Screen
The First Laser Engraver Machine with 24 Voltage, with Lower Current and Safter System.
Overall optimization:
Laser Master 2 Pro has a longer service life, because the mechanical structure has been optimized and designed to have a faster speed and can work stably for a long time. At the same time, Ortur Laser Master 2 Pro can provide users with more security because it has more security features.
Accessories system update:
Because it is equipped with the latest OLM-PRO-V10 motherboard, the engraving is smoother and more delicate, the engraving accuracy is higher, and the speed is faster. 2. The circuit system with 24V voltage is upgraded, the current is lower, and the system is safer. 3. Update Ortur Laser 1.5 firmware, which is the most advanced laser engraving machine firmware at present, with more powerful functions. 4. Support Ortur offline control screen.
Product advantage:
Ortur Laser 1.5 firmware is based on OLF1.4 firmware upgrade, optimizes the motion algorithm, and increases the maximum motion speed from 4000mm/min to 10000mm/mm. The focus of the LU2-4 (20w) laser module is smaller because of it. It is the second-generation FAC laser module, the focal point is only 0.08*0.15mm, and the focal area is about a quarter of the first-generation 0.23*0.23mm.
Safety protection:
When the engraving machine is displaced or tilted, it will automatically stop the laser to prevent damage to the target from the laser; 2. When the engraving machine or computer crashes, the laser will stop working immediately to prevent continuous fire. 3. The engraving machine is turned on, but there is no movement for a long time, it will be protected, and the laser will be turned off automatically. 4. Flame Detector + Buzzer Alarm 5. Emergency stop switch for emergency
Note:
Please wear goggles when operating the laser engraver. Wear safety goggles to avoid blindness.
Please do not touch the laser emitter with your hand, or it may burn your hand.
Please avoid strong impact on the machine.
Children under 14 are not allowed to use this product and children over 14 need adult supervision.
The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
This product is not recommended for industrial cutting due to its high engraving speed.
Tip: Because the software is constantly updated and optimized.

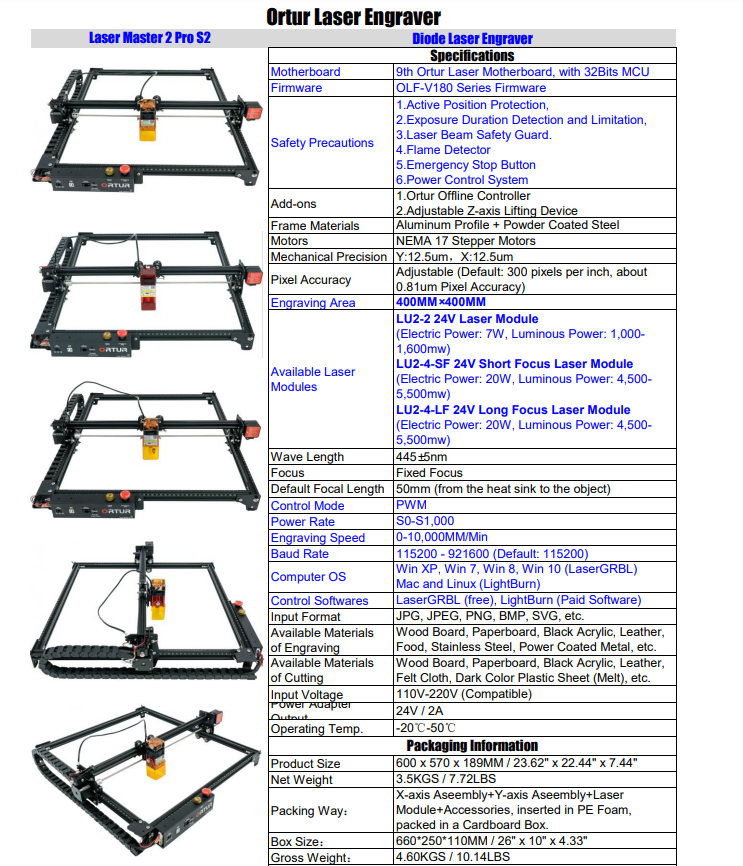

Brand: Ortur
Model Number: Laser Master 2 PRO S2 LU2-2
Type: Laser engraving machine
Material: Aluminum + Acrylic
Laser Power Input: 20W +-
Optical Power Ouput: 1000mw – 1600mw / 4500mw-5500mw / 10000mw
Laser Reaching Range: 445 ± 5nm
Power By: Power Adapter 12v 3A
Package Contents: 1 x Laser Engraving Machine + Part Accessories
*This is a special import item, lead time will be 4-6 weeks from date of order and payment confirmation.
